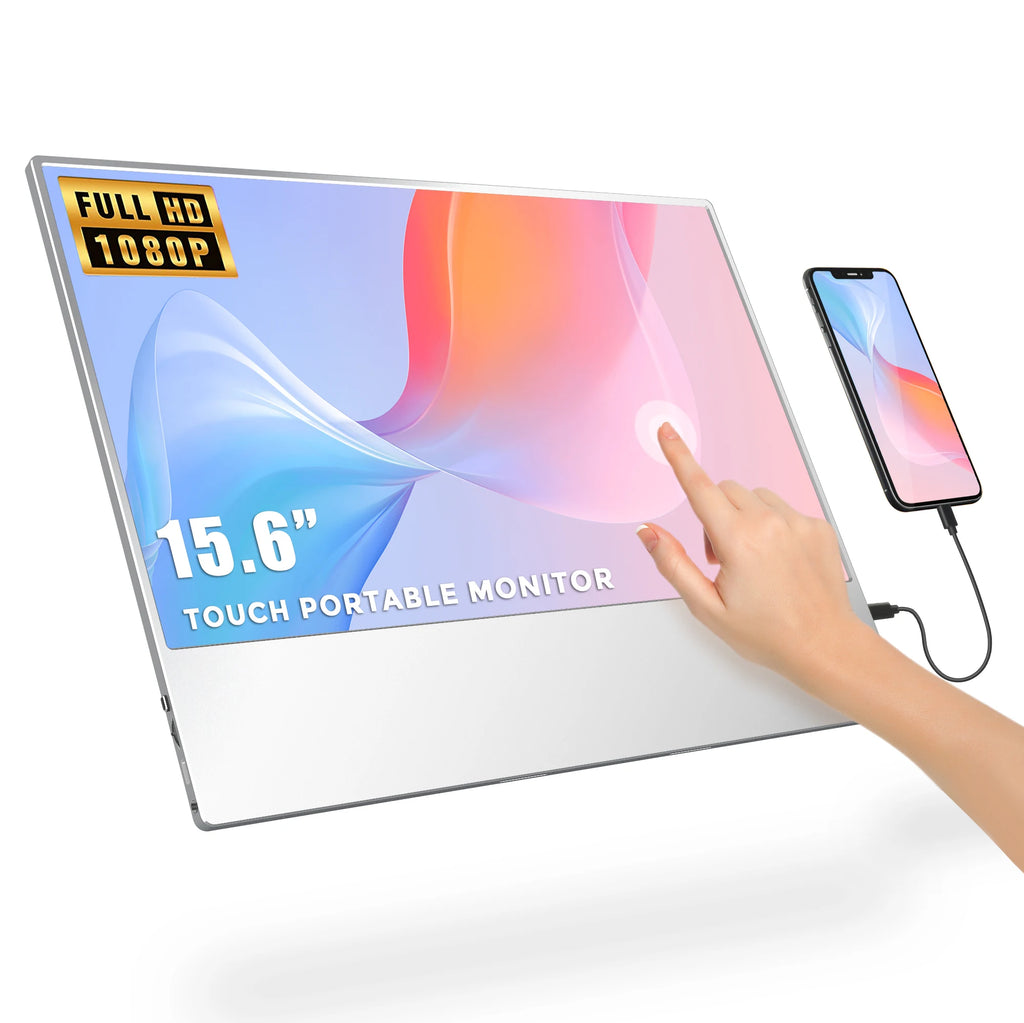

SIBOLAN 4mm Ultra-Narrow Bezel Ultra-Thin Slim Unibody Design 15.6 inch 1080p On-Cell Touch mini HD Portable Monitor support ODM

Regular price $0.00 $450.04 Sale

Customizable We can support OEM/ODM service, the process of customization is following: 1: Provide your specific requirement. 2: Our design engineers draw the design draft.3: You confirm the...

Availability: In stock

Vendor: Black Hot Fire Network Store

Model Number

Regular price $0.00 $450.04 Sale

Subtotal: $450.04

Qty

Add to wishlist

Details

Customizable

We can support OEM/ODM service, the process of customization is following:

1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.

Assisting customers in their journey towards customized solutions:

☑ Logo(Packing , Logo)
☑ Product Color
☑ Specification/Function Customization
☑ Interfaces Customization

☑ The shell mould Customization

Product Description

SIBOLAN 5mm Ultra-Narrow Bezel Ultra-Thin Slim Unibody design 15.6 inch 16 inch 1080p Touch screen mini HD Portable Monitor support factory OEM ODM

[FHD 1080P IPS HDR Screen]:

This portable monitor delivers a vivid image and truly immersive viewing experience with stunning 1920 x 1080 resolution visuals & awesome color reproduction. The 15.6 inch Full HD IPS portable screen offer 178° Full viewing angle and Eye Care technology that keeps your eyes from getting tired during prolonged use.

[15.6 inch 10 Point in-cell Touchscreen Monitor]:
Adopt On-Cell Touch High precision touch board. Support MAC OS for single point Touch Screen(For version under IOS 13.4 only, latest version could not support at present )（For OEM/ODM order, There's also MAC os touch-gesture, Mouse Righ, Page Flip for optional with extra cost.）just connect the USB cable to your device to achieve the touch function. Multi-touch has been tested to work with Windows, Android, Chrome OS and Ubuntu. Support wind7, win8, win8.1, win10; 10 point multi touch(For wind10 only);
(NOTE: All gaming device and mobile phone without full featured type C function can not get touch function.)

[16 inch 10-point Capacitive Touch Support Digital Stylus Pen]:
Capacitive G+G Full-Laminated 10 Point Touch, support much more precise and sensitive touch, no extra driver needed, just connect the USB cable to your device to achieve the touch function. Multi-touch has been tested to work with Windows, Android, Chrome OS and Ubuntu. Support wind7, win8, win8.1, win10; 10 point multi touch(For wind10 only);
(NOTE: All gaming device and mobile phone without full featured type C function can not get touch function.)

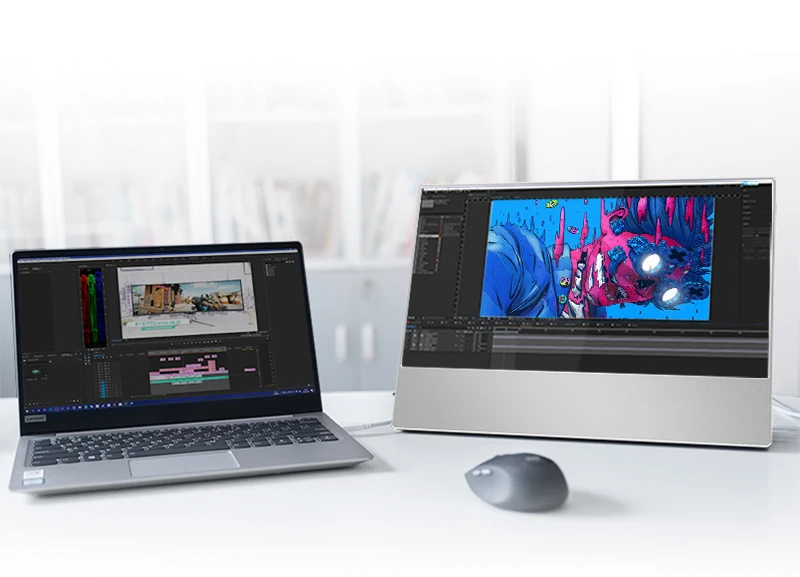

[Plug-and-play Dual Screen]:

Plug and play, no need to download and install any software. Note, touch function only work when you set the SIBOLAN monitor as replication model (display same content with your PC monitor), while you connect to your laptop via HD port ,additionally need USB cable connected to get touch signal from the devices.

[Dual USB C and MINI HD input port Monitor]:

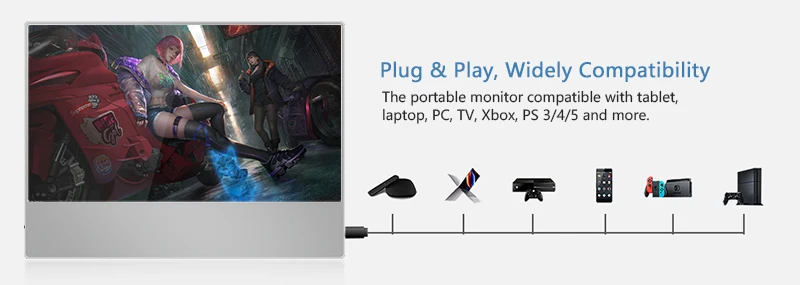

USB-C powered monitor has 2 USB-C and Mini HD input ports, it is compatible with multiple devices: Smart Phone (Android,must have full-featured USB-C port) ), laptops, computers, for Xbox One, PS5/4, Switch, Raspberry Pi, etc.

(Note: While connect your device via Type-C port , Please check if the Type C of your laptop/phone is a full featured Type C port. Your device should support thunderbolt 3.0 or USB 3.1 Gen2 Type C DP ALT-MODE. If it is just a Type C for charging, it will not be available.)

Product Parameters

Model	USB Powered Touch Screen Portable Monitor S14ec-1 / S14ec-3
Panel Type	16 inch TFT IPS LCD (16:9 Wide) LED Backlight
Touch Screen	Projective Capacitive G+G Full-Laminated Touch Monitor, support 10-finger multi-point touch, support win8, win8.1, win10
Resolution/Color Depth	1920(RGB) x1080(FHD)
Display colors	16.7M, colors 8-bits, 71% of sRGB
Active Area	349.632(H)*196.668(V)
Pixel Pitch	0.0607 (H) X 0.1821mm (V)
Viewing Angle(U/D/L/R)	85/85/85/85 (Typ.)(CR≥10)
Contrast Ratio	800:1 (Typical)
Flat Ratio	16:9 (H:V)
Brightness	220(cd/m ²)
Response Time	30(ms)
Vertical Frequency	60Hz
Monitor Housing	High Quality aluminium alloy
Connectivity	1*HD Mini Port
		1*Type C Port (For Power)
		1*USB Port (For Video Data Transfer)
Compatible	Compatible with various of HD and USB C devices: Smart Phone, Laptop, M&ac, for Xbox One, for Xbox 360, for PlayStation 4, for PlayStation, Switch, PC and Mobile devices.
Speakers	2 x 1.0W(Max.)
Rating Voltage	5V-3.0A
Dimension(W/H/T)	15.6 inch: 3552645mm ; 16 inch: 3612486 mm
Weight	796g(Only 15.6 inch Monitor); 953g (Only 16 inch Monitor) / 1010g (16 inch Monitor With Magnetic Stand)
Free Accessories	Type-C cable1 / HD cable1 / USB A to C cable1 / AC adapter 1 / User manual*1

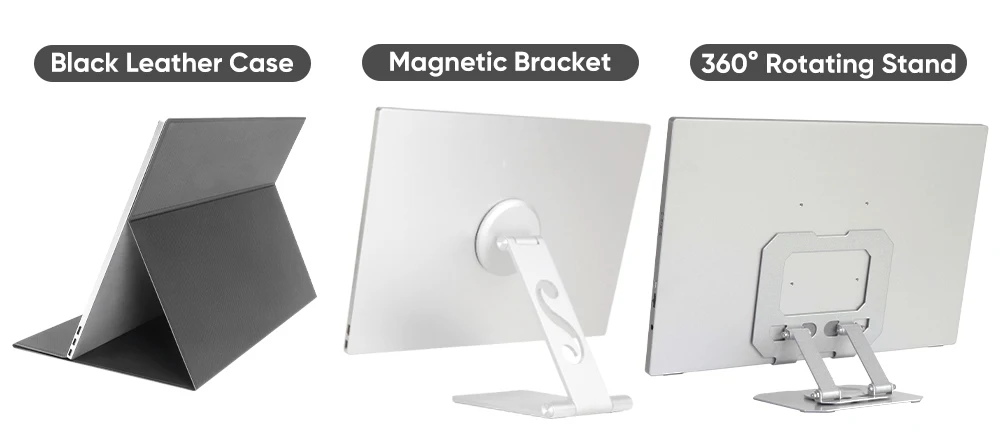

Optional (Pay extra to get )	Leather case1+$10-$12 / Keyboard1+$15 / 360° stand1+$20 / Magnetic stand1+$25
Shipment information	1 Pcs/CN: Carton Size: 43289cm, Weight: 2.5Kg/CN 2 Pcs/CN: Carton Size: 402918cm, Weight: 5.0Kg/CN 4 Pcs/CN: Carton Size: 412932cm, Weight: 9.5Kg/CN 8 Pcs/CN: Carton Size: 563342cm, Weight: 16.0Kg/CN
Note	Design and specifications are subject to change without prior notice.

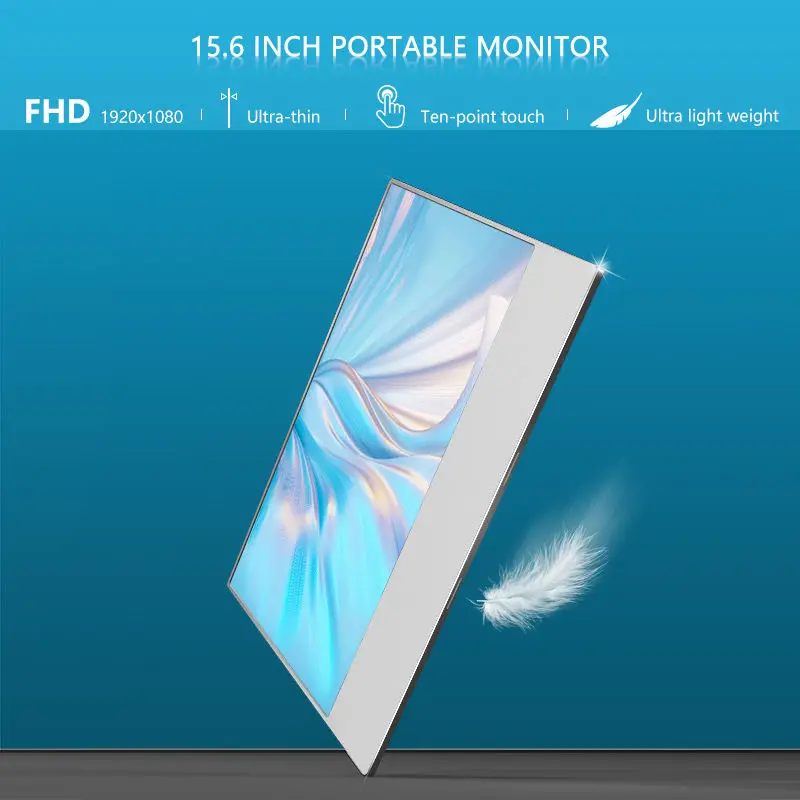

15.6 INCH TOUCH SLIM PORTABLE MONITOR

15.6 INCH 10 POINT TOUCHSCREEN

Adopted Touchscreen Monitor-G+G Full Lamination /Touch Support MAC OS technology, support much more precise and sensitive touch, no extra driver needed, just connect the USB cable to your device to achieve the touch function.

(NOTE: All gaming device and mobile phone without full featured type C function can not get touch function.)

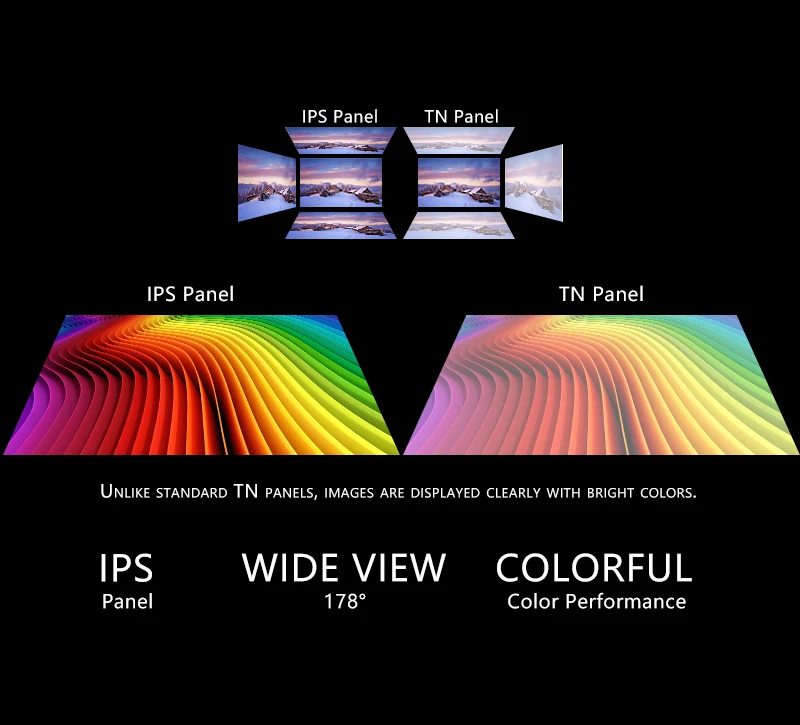

USE HIGH-PERFORMANCE IPS PANEL

Due to the IPS-based panel, the color and contrast changes are not easy to occur from all angles, and the image is clearly
displayed. Wide viewing angle of 178° up, down, left, and right.

1080P RESOLUTION + HDR

It preserves details in the darkest and brightest scenes, and delivers better contrast as well as more vibrant colors. HDR
portable monitor delivers a vivid image and truly immersive viewing experience with stunning 1920 x 1080 resolution visuals & awesome color reproduction.It equipped with HDR (High Dynamic Range), which is a technique to reproduce a greater dynamic range of luminosity.

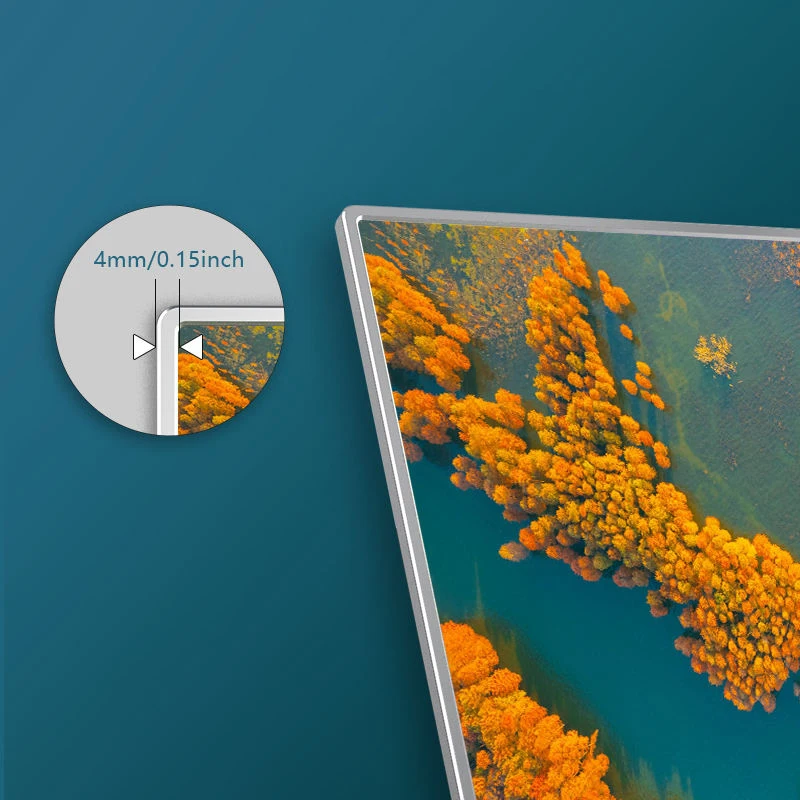

ULTRA-NARROW BEZEL

Immersive experience, expand your horizons.

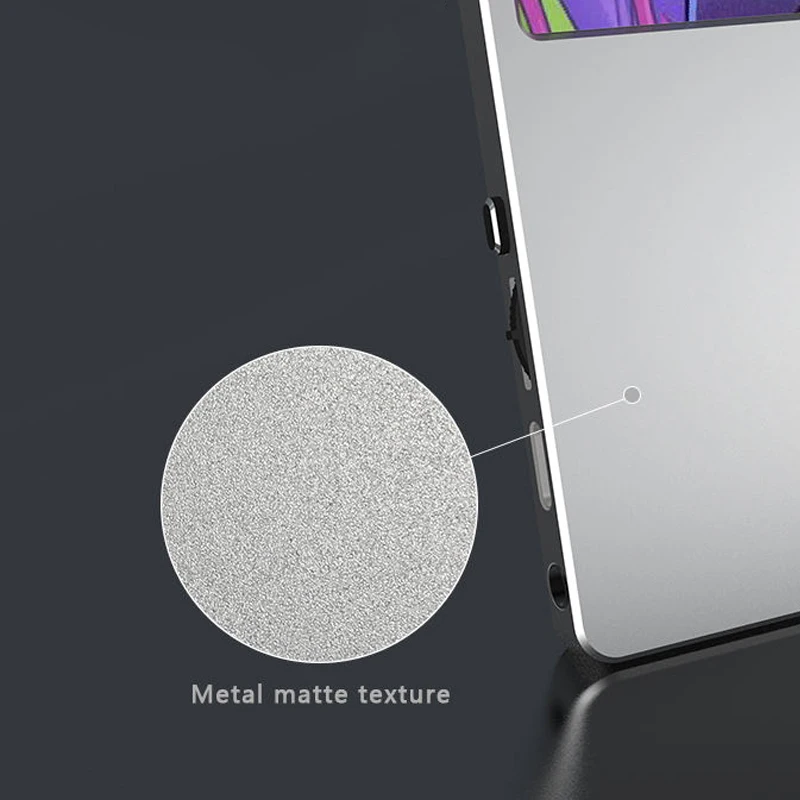

APPEARANCE MATERIAL

The aluminum-magnesium alloy material makes the display more sturdy and lighter, making the display full of texture and eye-catching.

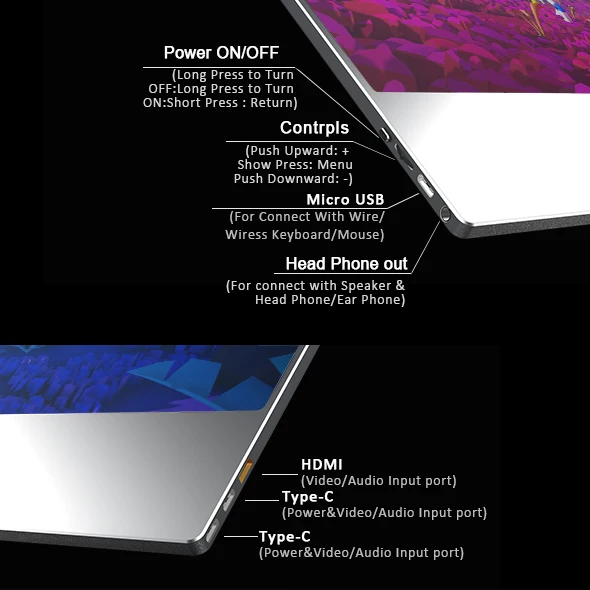

PRODUCT INTERFACE

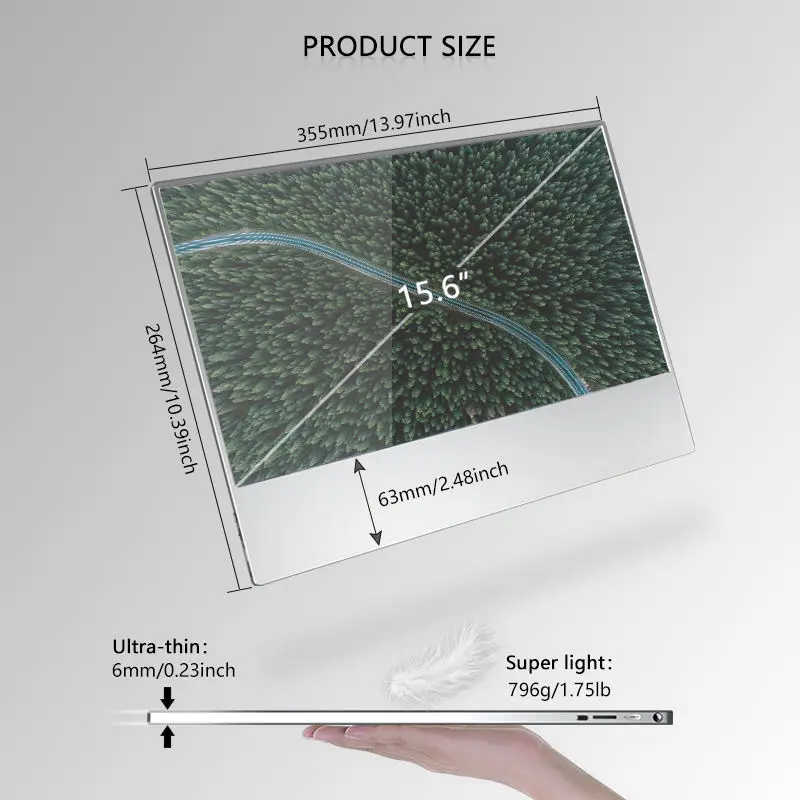

POTABLE SIZE

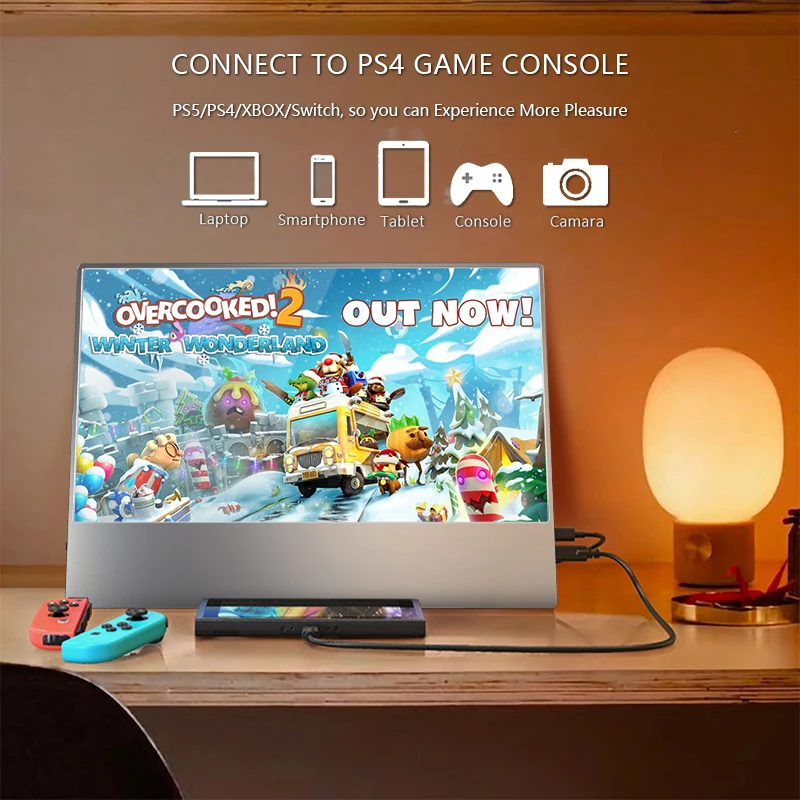

CONNECT TO PS4 GAME CONSOLE

PS5 / PS4 / for XBOX / Switch, So you can Experience More Pleasure.

USB TYPE-C PORTABLE MONITOR

When There is no External Power Supply, the Mobile Phone battery Supplies Power to the Monitor.When the External Power Supply is Connected, the Monitor Charges the Mobile Phone Through the External Power Supply.
